Product

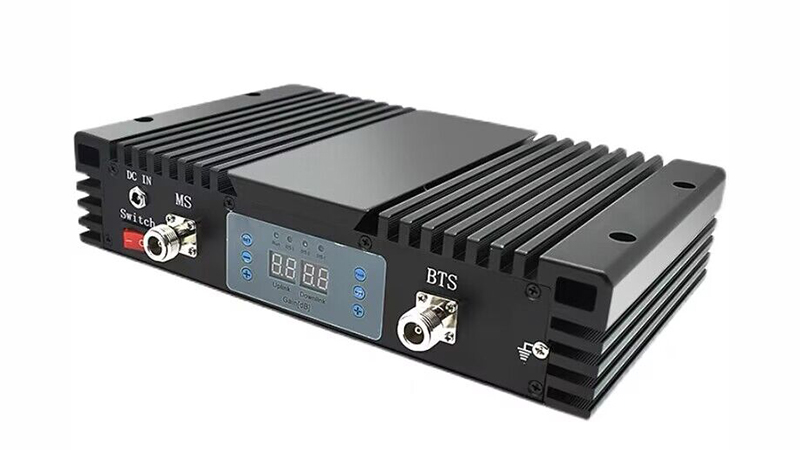

EU 20dBm Dual Band Signal Booster
EU 20dBm Dual Band Signal Booster
Model：
BL-20 Dual Band EGSM+DCS ,EGSM+WCDMA, EGSM+Lte 2600
20 dBm Dual Band Signal Booster
Description：
Indoor Dual Band Signal Repeater (Signal Booster) series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
The signal booster improves mobile signals with no negative impact on human health.
Features：
1. Cost effective solution for weak signal zones, reduce drop/off calls.
Expansion and extending of the signal of base station.
Optimization of the quality of the signal and source
Advantages:

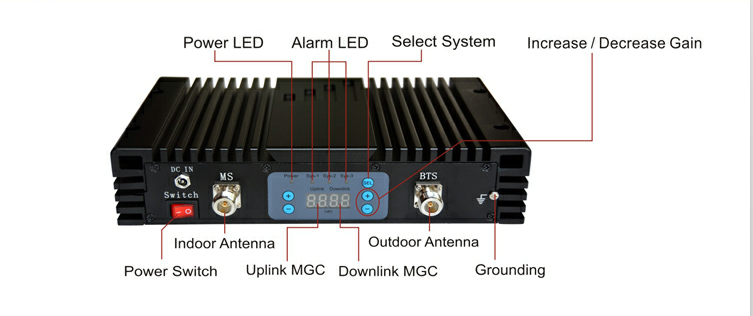

Digital Display Panel, Intelligent mode setting
Set the technical parameters simple and efficient, this is easier than DIP Switch.
Standard Package:
Application:
Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.

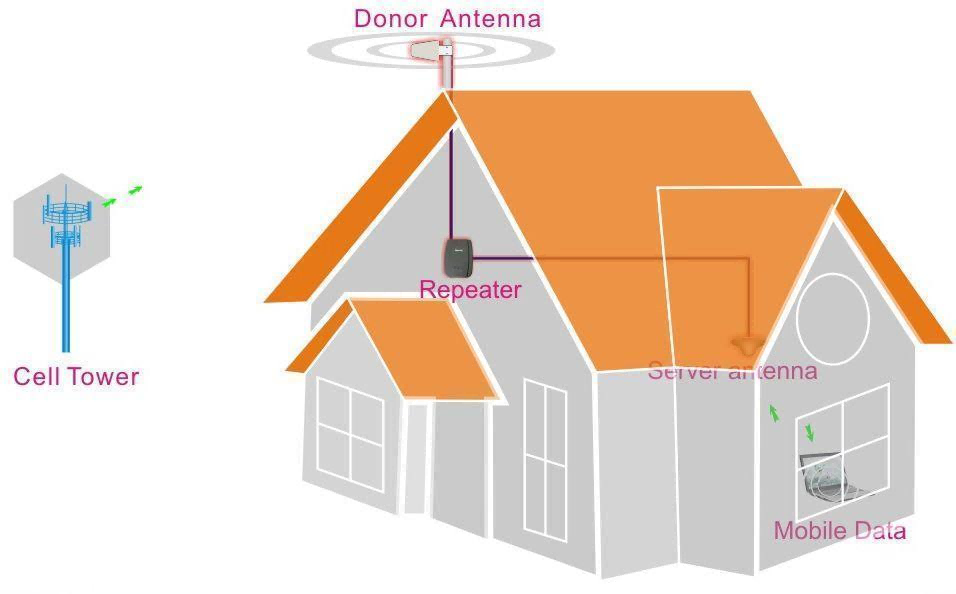

Application Diagram:
Specification.
Model
Frequency Range
Uplink
Downlink
BL-20ED
EGSM+DCS
880-915 /1710-1785Mhz
925-960 /1805-1880 Mhz
BL-20EW
EGSM+WCDMA
880-915 / 1920-1980Mhz
925-960 /2110-2170 Mhz
BL-20EL
EGSM+Lte 2600
880-915 / 2500-2570 Mhz
925-960 /2620-2690 Mhz
Max. Gain
65dB±2dB
70dB±2dB
Max. Output Power
17dBm±2dBm
20dBm±2dBm
Band width
Wide Band
Manual Gain Control
31dB / 1dB Step
Automatic Gain Control
>30dB
Ripple in Band
8dB
Noise Figure
≤ 6dB
VSWR
≤ 2.0
Intermodulation Products
9KHz~1GHz
≤ -36dBm
1~12.75GHz
≤ -30dBm
Spurious Emission
9KHz~1GHz
≤ -36dBm
1~12.75GHz
≤ -30dBm
Time Delay
≤ 1.5 μs
Frequency stability
≤ 0.01ppm
MTBF
> 50000 hours
Impedance
50 ohm
Power Supply
AC 90-264V,DC 9V/5A
Power LED
Power indicator
Alarm LED
Red
Self oscillation or Strong input signal
Green
Normal
Mechanical Specification
RF Connector
N-Female
Switch
Power Switch
Cooling
Heatsink Convection cooling
Humidity
< 90%
Operating Temperature
-10°C ~ +55°C
Environment Conditions
IP40
Installation Type
Wall Installation
Size
268mm*180* 20mm
Weight
3 Kg
Advantage:
2. Compact size, low power consumption, easy installation, great cover.
3. Cover about 500~3000m² without block or obstruct.
4. High linear design, ALC function design, low interference to BTS.
5. Support any cellular devices (voice & data & video)
6. Wide band signal booster, or customize selective band booster.

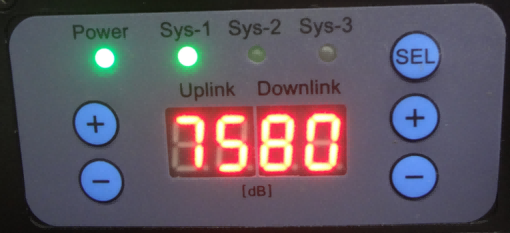

Smart function called which can be activated via the digital display panel.
Users can choose gain and working system by LED Digital Panel.
1) AC90-264V, DC9V/5A power supply adapter 1PCS
2) AC power cord (EU/US/UK/SA/China standard, etc) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
Recommended Accessories:
1)Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2)Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3)5D-FB coaxial cable with connecter (Cable length optional)
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
