WIFI GPS 2G 3G 4G 5G 10W Mobile Phone Signal Jammer Module
WIFI GPS 2G 3G 4G 5G 10W Mobile Phone Signal Jammer Module

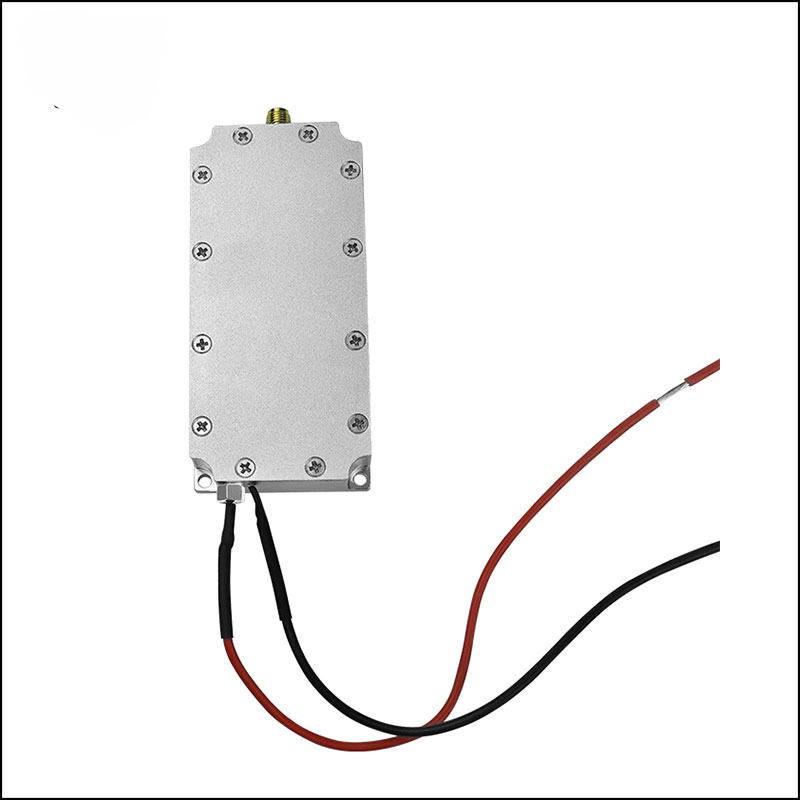

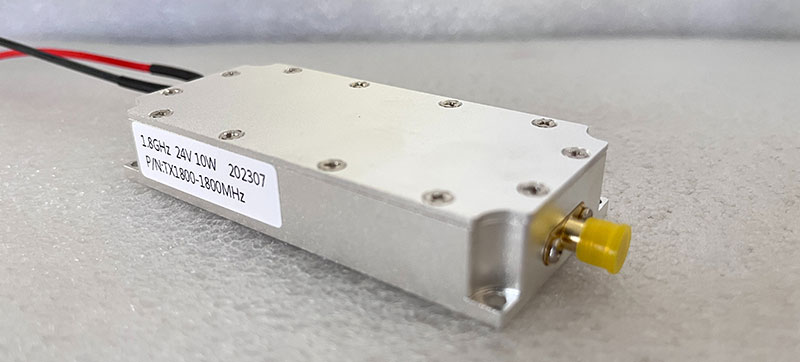

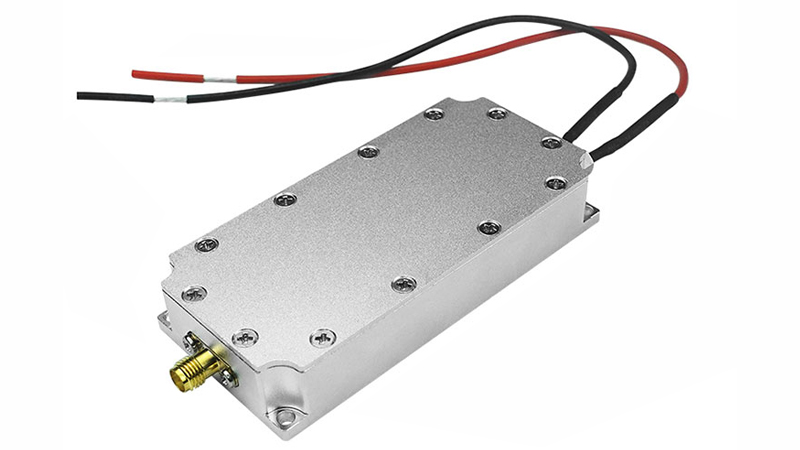

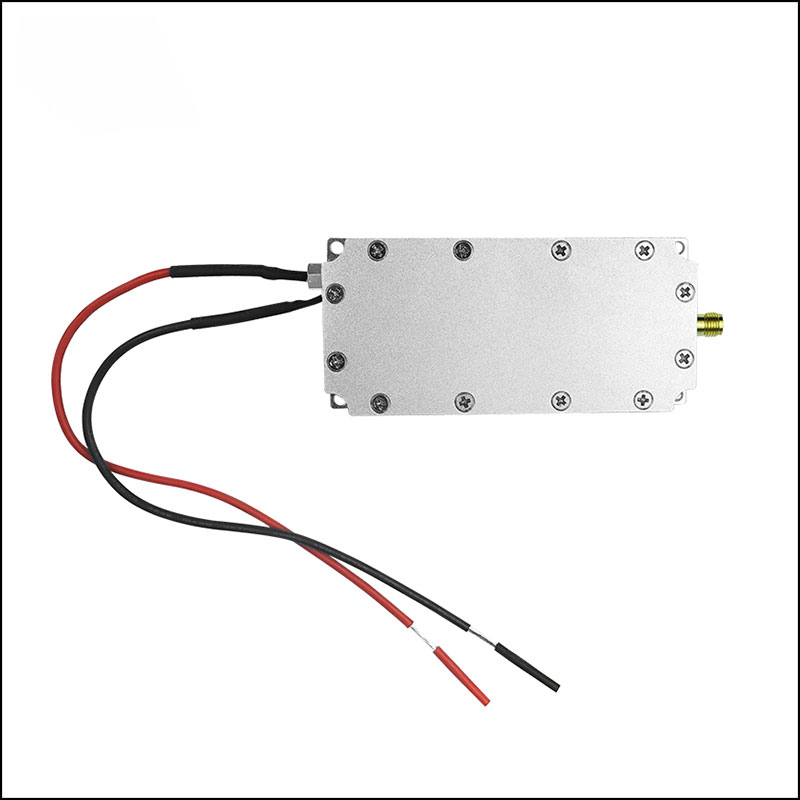

The 10W signal jammer module is suitable for the assembly-up of the finished product such as the portable brief case phone jammer, man pack or back pack mobile phone signal jammer, the VIP convoy trolley case signal jammer, the car load signal jammer,etc. Compare with the former 10W module, it is with a quite smaller size and higher out put power over 10W.
Specification
|
No. |
Parameter |
Value |
Unit |
|
1 |
Frequency |
Customized |
MHz |
|
2 |
Output Power |
5 |
W |
|
3 |
Gain |
37 |
dB |
|
4 |
Current |
0.7 |
A |
|
5 |
Size |
97*43*17 |
mm |
|
6 |
Weight |
102 |
g |
|
7 |
Output Connector |
SMA |
50Ω |
|
8 |
Work Voltage |
24/28/32 |
V |
|
9 |
Work Temperature |
-40~+65 |
℃ |
10W Signal Jammer Module Frequency Option
|
Band Name |
Frequency |
Band Name |
Frequency |
|
WiFi 2.4G |
2400-2485MHz |
DCS1800/1800MHz |
1805-1880 MHz |
|
WIFI5.2G |
5150-5350MHz |
3G CDMA / AWS |
2110-2170 MHz |
|
WIFI5.4G |
5470-5725MHz |
GPS |
1570-1580 MHz |
|
WiFi 5.8G |
5725-5850MHz |
WiFi |
2400-2500 MHz |
|
GPS L1 |
1560-1620MHz |
4G LTE 800 |
791-821 MHz |
|
GPS L2/Glonass |
1100-1300MHz |
4G LTE 700 (Optional) |
725-770 MHz |
|
5G |
3400-3600MHz |
4G LTE 2600 |
2620-2690 MHz |
|
5G 1 |
3600-3800MHz |
4G LTE 2300 (Optional) |
2300-2400 MHz |
|
RC315MHz |
315 MHz |
VHF |
135-174 MHz |
|
450 MHz |
460-470MHz |
UHF 433MHz |
400-470 MHz |
|
700/800 MHz |
703-862MHz |
LOJACK 173MHz |
170-175 MHz |
|
CDMA 800 /868 MHz |
851-894 MHz |
Wireless Camera 1.2G |
1100-1300MHz |
|
GSM 900 /915 MHz |
925-960 MHz |
Wireless Camera 2.4G |
2400-2483MHz |
