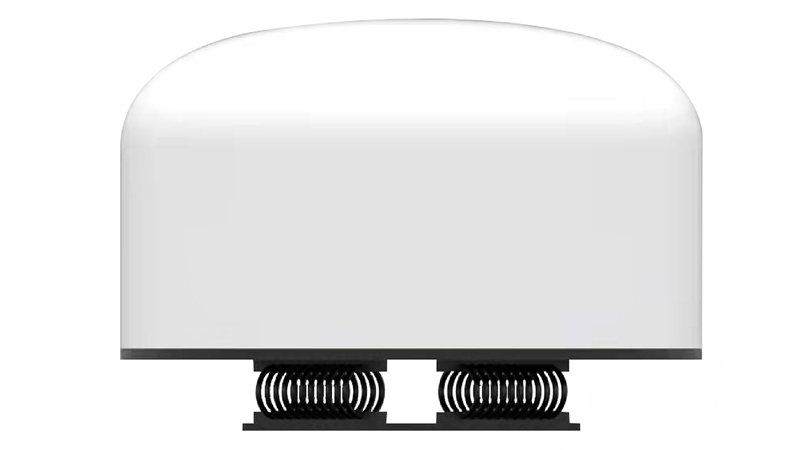

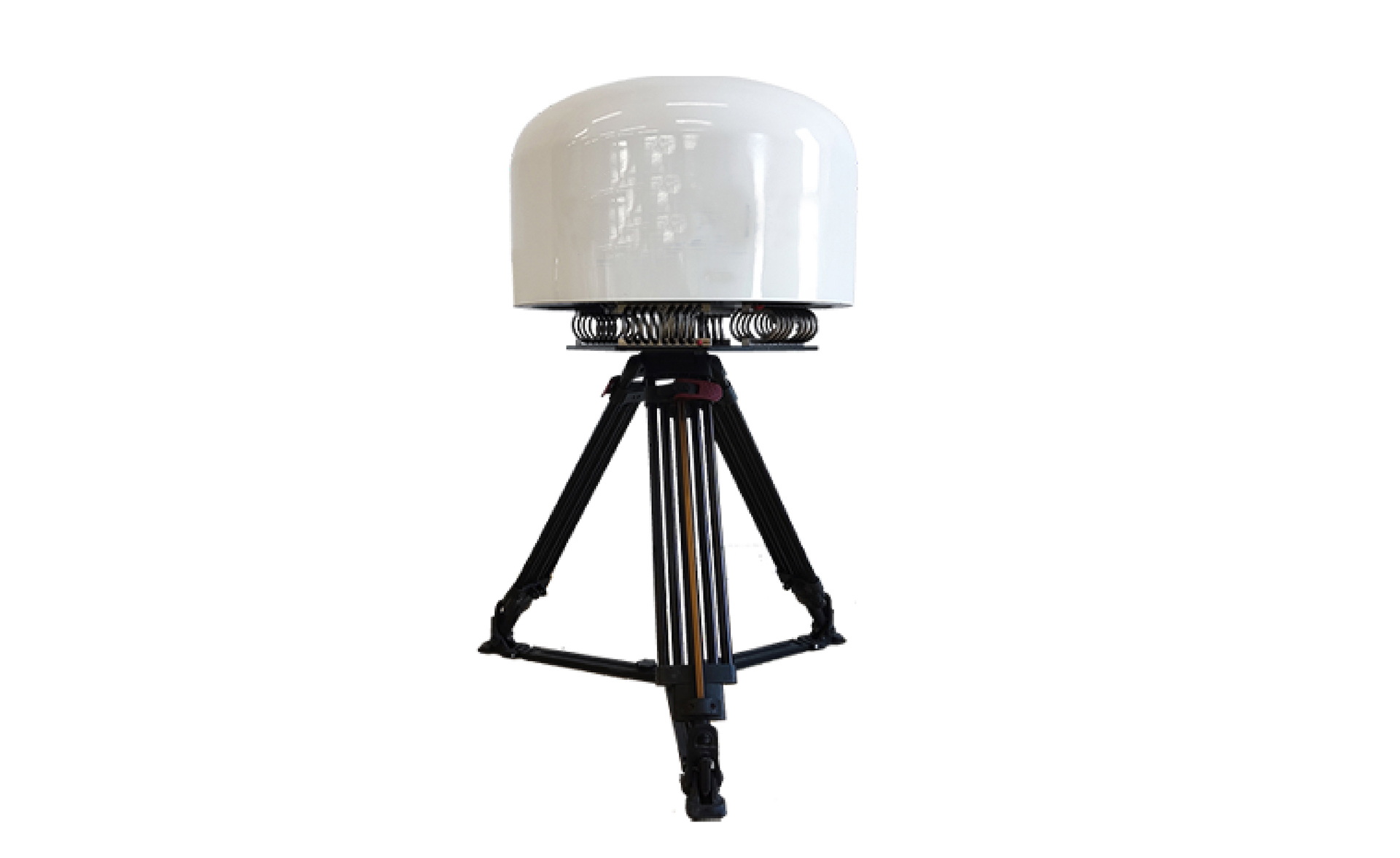

Drone Detection Jamming Integrated
Drone Detection Jamming Integra
| Feature |
1. Detection and Localizati on ,Can detect up to 10km+ distance, multi-station to achieve drone positioning 2.Precise Indentification ,Can accurately distinguish different drones of the same brand and model 3.Black&White List ,One click to mark the black and white list, the system permanently recorded black and white list, not affected by the switch 4.Unattended ,Automatic identification, warning and combat without human intervention 5.Precision Strike ,Can be designated to strike any 1 of multiple drones, whitelisted drones are not interfered with when striking6.Signal Learning ,Can scan and monitor the surrounding radio environment, learn and identify unknown UAV signals |
|
| Detection Function | Detection Means | Passive radio frequency, no signal emission |
| Drone Frequency | 100MHz-6GHz | |
| Detection Distance | 1-5km | |
| Detection Sensitivity | better than-95dBm（25kHz） | |
| Detection Precision | ≤3°Hovering ≤10°Moving | |
| Ditection Directivity | 360°Omnidirectional | |
| Simultaneous Detection | ≥30 drones | |
| Wide-bands Jamming | Work Mode | Radio Jamming |
| Targets | Drone control and/or navigation signals | |
| Jamming Frequency | 900MHz/1.5GHz/2.4GHz/5.2GHz/5.8GHz | |
| Strike Distance | 1-3km | |
| Suppression Rate | 10:1 | |
| Time to Response | 3 Seconds | |
| Integrability | V | |
| Functions | Precise Identification | V |
| Black & White List | V | |
| Full Model Library | V | |
| Protection Level | IP55 | |
| Working Temperature | -40 to +70℃ | |
| Working Time | ≥ 5h | |
| Power Supply | External Portable Power Supply 1300WH | |
| Packing | Size | 560mm×460mm×260mm |
| Weight | 25kg | |
