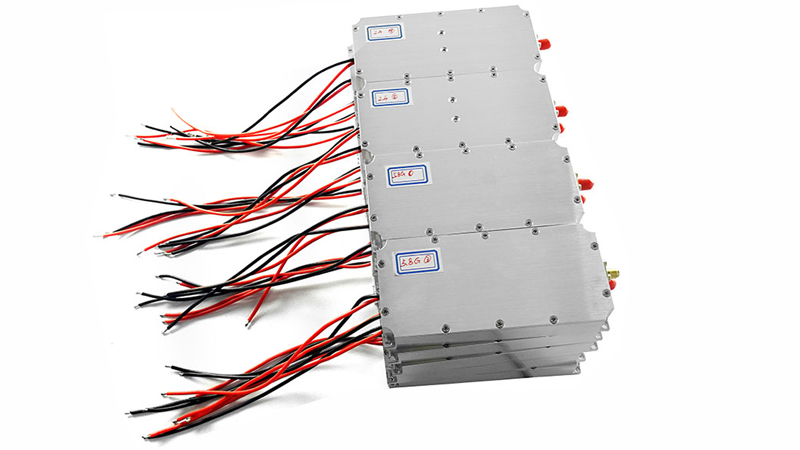

840 930 MHz 40W Drone Counter CUAS Signal Jamming Module
840 930 MHz 40W Drone Counter CUAS Signal Jamming Module
The drone Counter Signal jamming module is customized for Frequency and Output. The frequency is from 20MHz to 6GHz (WIFI 6 GHz is available too. ) The output power is customized 5W to 100W. We will do 100% spectrum analyzer tests before delivery to ensure its qualification. If customer need, we can offer the test sheet and paste the data of each module on a sticker. The jammer module is packed in a durable and neutral kraft paper box to ensure its safety in transportation.
Drone Counter Signal jamming module Specification
|
No. |
Item |
Data |
Unit |
Notes |
|
1 |
Frequency |
Customized |
MHZ |
|
|
2 |
Work Temperature |
-40~+65 |
℃ |
|
|
3 |
Output Power |
40 |
W |
|
|
4 |
Work Voltage |
24/28/32 |
V |
|
|
5 |
Max Gain |
46 |
dB |
|
|
6 |
Flatness |
±3 |
dB |
|
|
7 |
Max Current |
3.2 |
A |
|
|
8 |
Output VSWR |
≤1.5 |
|
|
|
9 |
Output Connector |
N/F 50Ω |
|
customized |
|
10 |
Power Amplifier Efficiency |
43 |
|
when Max Output |
|
11 |
Switch Control |
high low |
V |
0V off /0.6 on |
|
12 |
Size |
134*59*19 |
mm |
|
|
13 |
Weight |
0.249 |
Kg |
