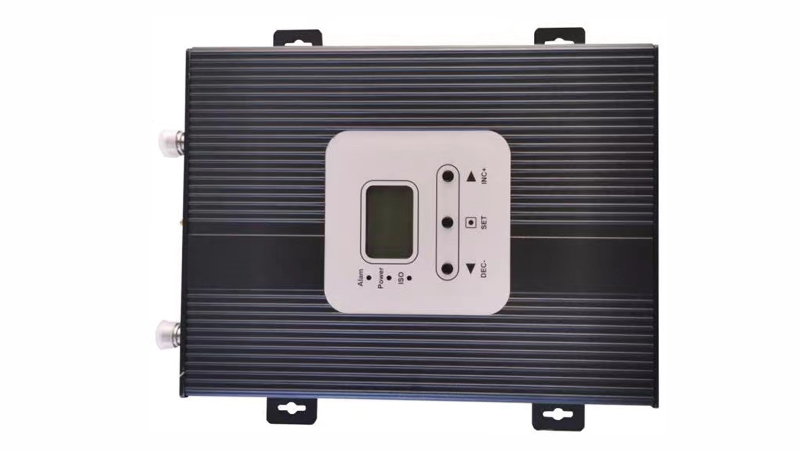

Mobile Signal Booster ALC AGC

Mobile Signal Booster ALC AGC

Mobile Signal Booster ALC AGC 2G 3G+4G Voice and Data

Product Feature
* All South African Networks, All Frequencies voice and data
* Coverage areas up to 1500 sqm2
* ALC (Auto Level Control) and AGC / 0~30dB Range
* RSSI Signal Strength Indicator and Oscillation Alarm
* Upgraded Gain Level 70dB
* Supports 100-140 Simultaneous Users
* 30-day money back guarantee
* 3 year warranty
* Free Technical Support

SKU The Triband Ultra X Booster
Gain UL 24~65dB
DL 29~75dB
Power UL Max 19dBm
DL Max 24dBm
Coverage 1500m2
Frequency GSM 900MHz: UL 890~915MHz – DL 935~960MHz
GSM 1800MHz: 4G LTE Band: UL 1710~1785MHz – DL 1805~1880MHz
3G UMTS: UL 1920~1990MHz – DL 2110~2180MHz
Ripple in Band 5dB
Spurious Emission -30dBm ~ -36dBm
Max Noise Figure 6dB
Return Loss 3dB
Time Delay 0.5μs
MTBF > 50000hours
Power Supply AC100~240V 50~60Hz / DC12V 2A (Included)
Power Consumption < 10 Watt
Impendence 50 Ω
Connector N-Female as standard
Cooling Heatsink convection cooling
Dimensions (DxWxH) 230x130x34mm
Weight 1200 Gram
Environment Conditions IP 40
Humidity < 90%
Operating Temperature 10°C – 60°C
