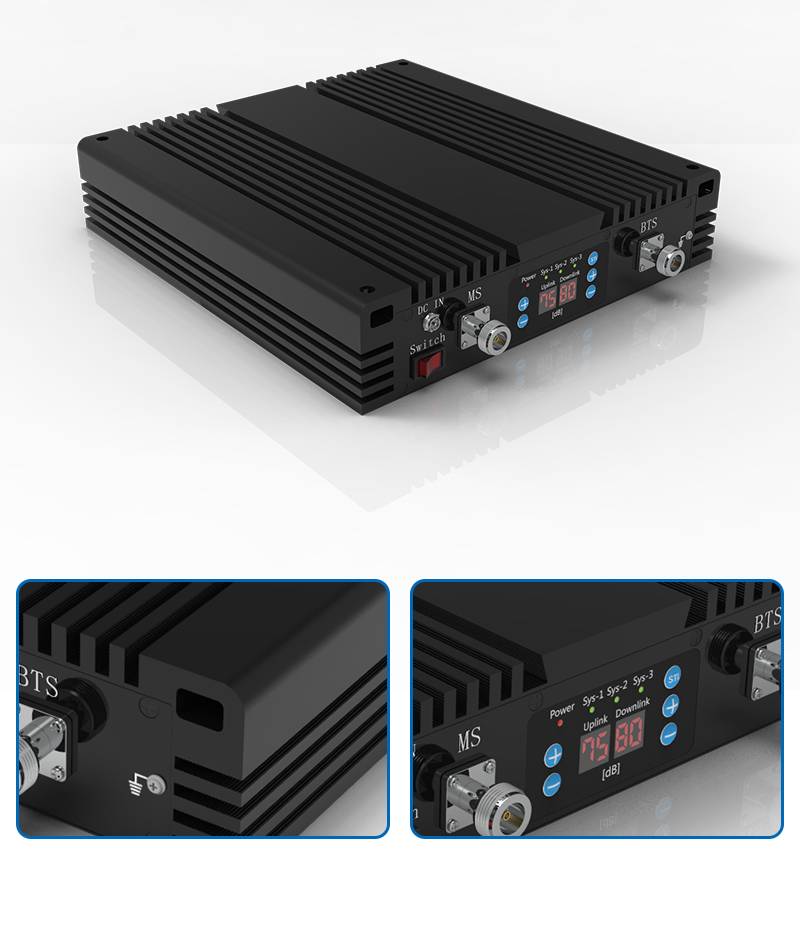

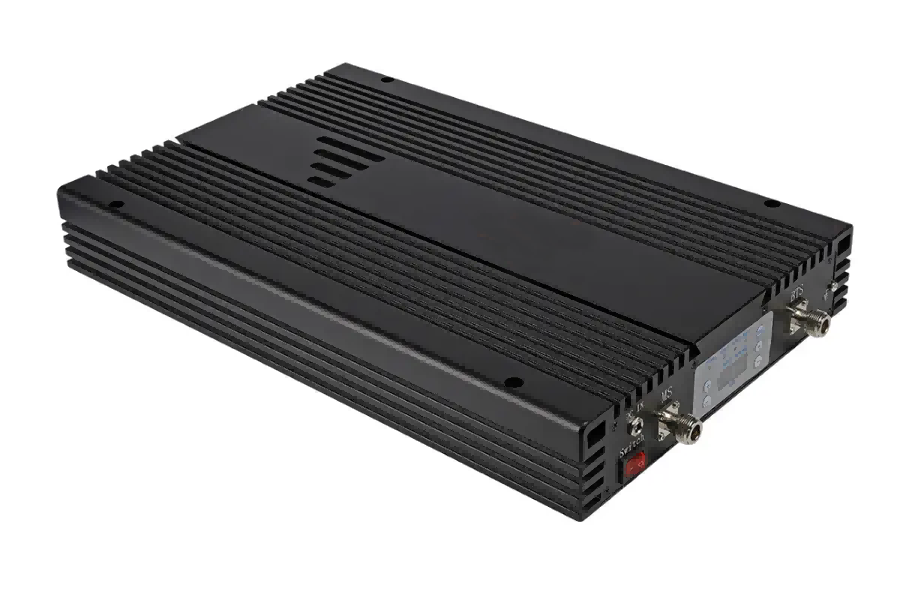

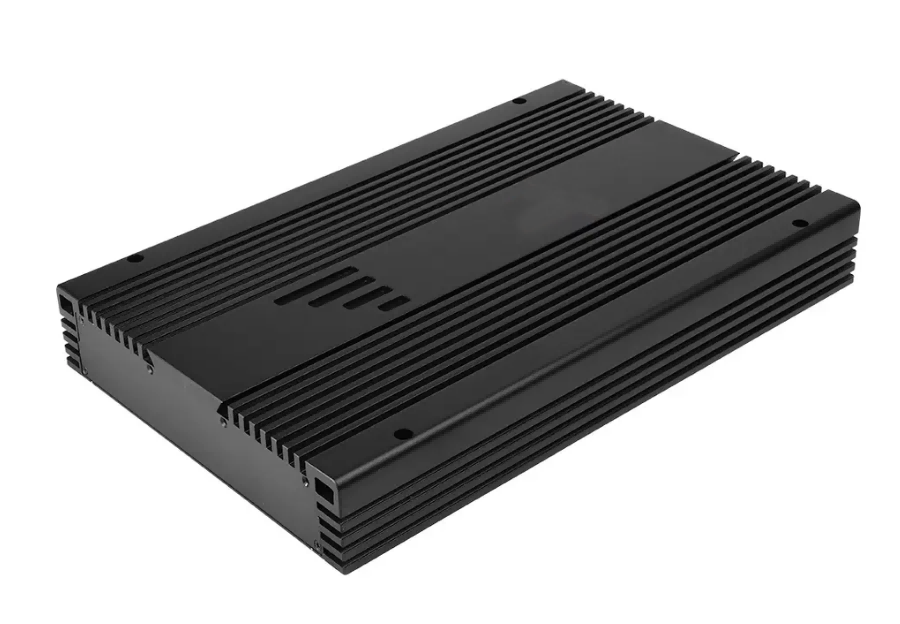

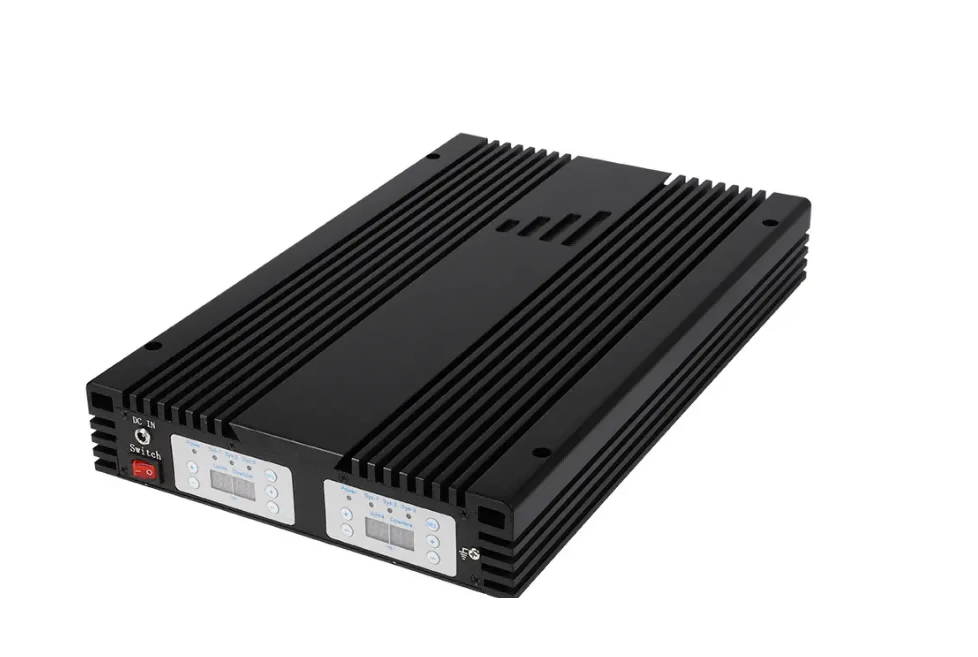

5 Band Mobile Signal Booster


5  Band Mobile Signal Booster


5  Band Mobile Signal Booster

Description

Indoor 5 Band Signal Booster series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.

The signal booster improves mobile signals with no negative impact on human health.


Features

1. Cost effective solution for weak signal zones, reduce drop/off calls.
2. Compact size, low power consumption, easy installation, great cover.

Expansion and extending of the signal of base station.

Optimization of the quality of the signal and source
3. High linear design, ALC function design, low interference to BTS.

Specification.

Specification.

Frequency Range

Uplink

Downlink

700MHz

703 – 748MHz

758 – 803MHz

CDMA

825-835MHz

870-880MHz

GSM

890-915MHz

925-960MHz

DCS

1710-1785MHz

1805-1880MHz

WCDMA

1920-1980MHz

2110-2170MHz

Max. Gain

68±3dB

75±3dB

Max. Output Power

15±2dBm

23±2dBm

Band width

Wide Band

Manual Gain Control

31dB / 1dB Step

Automatic Gain Control

>30dB

Ripple in Band

8dB

Noise Figure

5dB

VSWR

≤ 2.0

Intermodulation Products

9KHz~1GHz

-36dBm

1~12.75GHz

-30dBm

Spurious Emission

9KHz~1GHz

-36dBm

1~12.75GHz

-30dBm

Time Delay

1.5 μs

Frequency stability

0.01ppm

MTBF

> 50000 hours

Impedance

50 ohm

Power Supply

AC 90-260V,DC 10V/10A

Power LED

Power indicator

Alarm LED

Red

Self oscillation or Strong input signal

Green

Normal

Mechanical Specification

RF Connector

N-Female

Switch

Power Switch

Cooling

Heatsink Convection cooling

Humidity

< 90%

Operating Temperature

-10°C ~ +55°C

Environment Conditions

IP40

Installation Type

Wall Installation

Size

420*268 * 60mm

Weight

10Kg

Advantage:

POWER LED

Green

Normal

Off

DC power problem

ALARM LED

Green

Sys-1,2 3,4,5 working in linearity

Red

There are strong input signal or severe self oscillation.

Attention: input signal level is too high or the space of donor antenna and service antenna is not enough. please adjust the gain, If the red light still turning on that means over accepting of donor antenna or strong interference, then please adjust the place of donor antenna.

OFF

Repeater breaks down, Please re-plug in and check if Alarm LED turns red, if it is, please take measures to keep Alarm LED green; if it maintains off, it means the power break down.

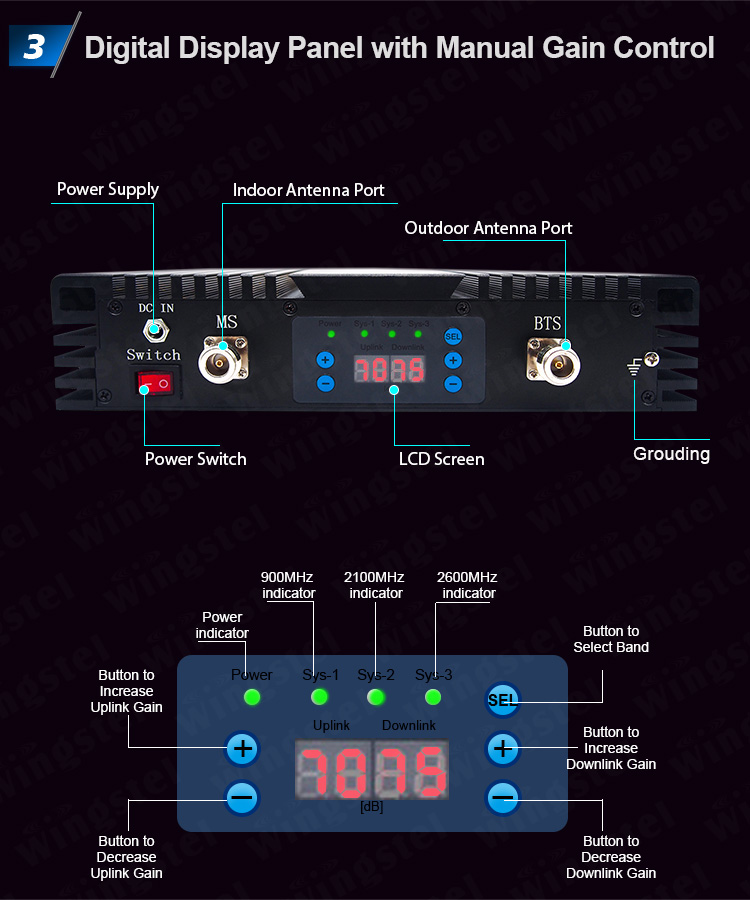

Uplink MGC

Downlink MGC

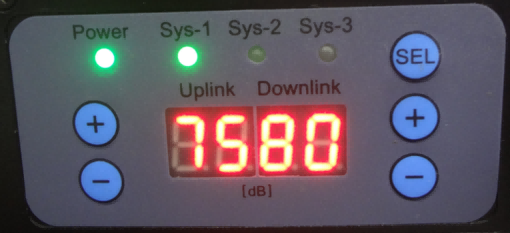

Digital display panel will show the real-time gain,

“+”increase gain,“-”decrease gain.


SEL

Select the different systems when you need, (only for Dual band, Tri band, Quad-band or Five band repeater.)
